Damond Motorsports NEW Mazdaspeed3 Rear Motor Mount Install Guide
The Damond Motorsports Rear Motor Mount is a must have for any car enthusiast. If you want to get rid of wheel hop and lock down your motor without adding unbearable noise or vibration to the passenger cabin, you need this mount. Here is out install guide.
WARNING:
By installing this Product, you understand that:
The buyer/user assumes all risk as to quality, performance and use of these products and agrees to hold DD2, Inc. DBA Damond Motorsports (“DM”) and its representatives not responsible for any injury, loss, or damage; including any and all incidental or consequential damages arising from the sale, installation, or use of our products.
Many parts are intended for “OFF ROAD ” and “RACING” applications only. It is suggested that State and Federal emission regulation be checked, to see whether or not this product complies with those laws. Read through the instruction guide thoroughly, before attempting this install. Do not install any components while the engine is running or shortly after the car has been running. Give the car some time to cool down. Failure to install this product correctly, or failure to remove/reinstall existing components correctly, could result in poor running conditions, or even component and engine failure, which the sole user of this product is responsible for. The install instructions are intended to guide you on how to install this product properly. Only an experienced mechanic should perform this install. In addition, DM, and its representatives reserve the right to modify and or discontinue parts without notice. If you the user/buyer of this product do not agree with the above, contact DM immediately, to discuss a possible return of our product for a full refund minus shipping costs, and other fees.
Parts included:
- 1 x Damond Motorsports Rear Motor Mount, with the bushings pre-assembled into the mount. Note: One bushing has a relief, this for fitment on the Focus ST
- 1 x long 16mm head bolt
- 1 x 18mm locknut
- 1 x Allen key bolt NOT USED ON THE MAZDASPEED3
Tools Needed:
- Safe means of lifting and supporting the vehicle: jack and jack stands, wheel ramps, or lift.
- Torque Wrench
- Socket wrench or breaker bar
- 19mm socket
- 17mm socket
- 16mm socket
- 18mm wrench or socket
Begin by properly supporting the vehicle in the air, as the RMM is located under the vehicle(CAUTION: allow the vehicle to cool down fully before attempting any work)
Locate the factory RMM assembly, connecting the transmission to the subframe.
Not necessary but helpful: Place a jack or support under the transmission, to reduce movement of the engine while removing and installing the mounts.
Begin by loosening and removing the two 17mm bolts holding the mount in place (blue) . Hold aside the bolt marked green, as it will be reused.
Next remove the three 19mm bolts securing the transmission adapter block (red), the forward most bolt does not need to be fully removed, just loosened to swing the transmission adapter down.

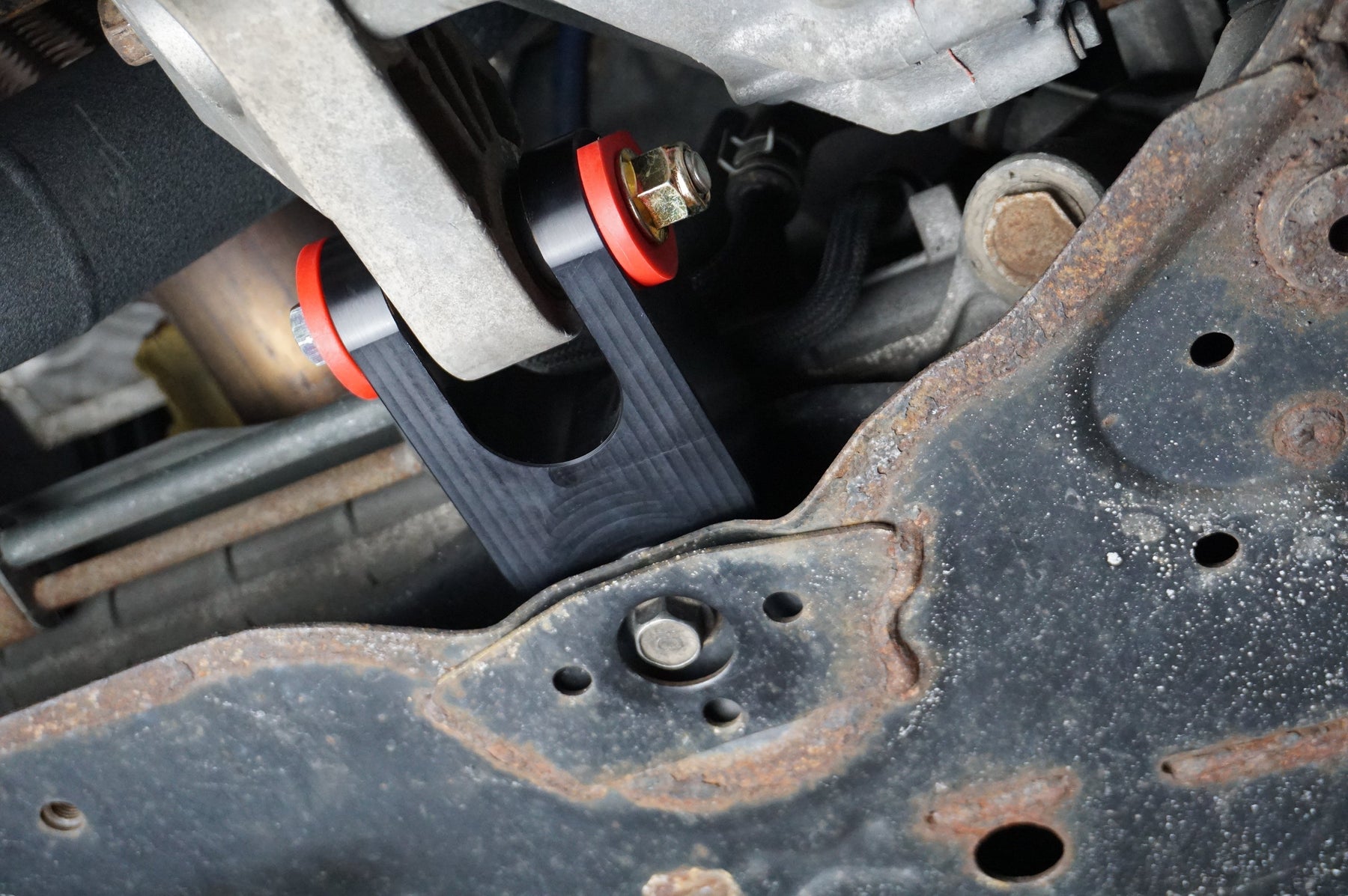

Take the DM RMM and place it in the subframe as shown, and insert the provided bolt through the mount and transmission adapter in the orientation shown. Hand thread on the supplied nut.
Align the mount in the subframe, line up the bolt hole with the hole in the mount, and insert the 17mm factory bolt as noted prior. Thread the bolt in slightly, as to insure the threads engage, and allowing for some sideways slack, before tightening to spec.
Line up the tans block with the corresponding holes in the transmission, and carefully thread in all three 19mm bolts(note: this may require some movement of the motor to get the holes to align properly).
With all the bolts in place first tighten the three 19mm bolts of the transmission block to 80ft/lbs, next the 17mm bolt securing the DM mount to the subframe to 65ft/lbs
Finally tighten the 16mm bolt securing the DM RMM to the trans block to 50-60ft/lbs, use a 18mm wrench or socket with a breaker bar to keep the nut in place.
Install complete! Remove all tools from underneath and safely lower the vehicle. Start the car allowing time for it to properly warm up, and go for a not too brisk test drive. Check the torque of all the hardware once the vehicle has cooled down, to ensure no components have loosened. We recommend checking again after 1000 miles.
