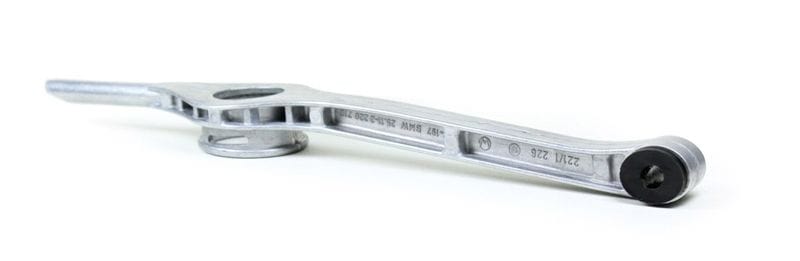

These 90A urethane bushings fit in the front of the BMW shifter carrier arm and improve shifting precision and feel. These bushings attach the carrier to the transmission. The stock rubber bushings fail easily and often and results in sloppy shifting. These bushings are easily installed when the carrier is out of the car. The 90A urethane is stiff enough to greatly reduce excessive play without adding any additional vibration.Replaces BMW part #25117507695. BMW carrier bushings are either Round or Oval. These Oval bushings fit on 5 and 6-speed transmission used in:E82 128i/135i/1M CoupeF22 228i/230i/M235i/M240iF87 M2E36 328i/M3E46 328i/330i/M3E9X 325i/328i/330i/335i/M3F30 320i/328i/330i/335i/340iF80 M3F32 428i/430i/435i/440iF82 M4E34 525i M50/530i/540iE39 528i/530i/540i/M5E60 545i/550i/M5F10 535i/550i/M5E63 645ci/650i/M6F06/F13 650i/M6E84 X1 28iZ3 2.5i/2.8/3.0i/MZ3E85 Z4 2.5iE89 Z4 28i/30i/35i
Diagram Reference #31
This part fits the following models:
BMW
1 Series
E82 1 Series (2008-2014)
E82 1M Coupe (2010-2012)
2 Series
F22 2 Series Coupe RWD (2014+)
F22 2 Series Coupe xDrive AWD (2014+)
F87 2 Series M2 (2016+)
3 Series
E36 3 Series (1992-1999)
E36 318Ti (1995-1999)
E46 M3 inc. CSL (1999-2006)
E90/E91/E92/E93 3 Series RWD (2006-2013)
E90/E92/E93 M3 (2007-2013)
F30 3-Series RWD (2012+)
F30 3-Series Xi AWD (2012+)
F80 M3 (2015+)
4 Series
F32 4-Series RWD (2014+)
F32 4-Series Xi AWD (2014+)
F82 M4 (2015+)
F83 M4 (2015+)
5 Series
E39 525i/528i/530i (1997-2003)
E39 520-530 Touring (1997-2003)
E39 540i (1997-2003)
E39 M5 (1997-2003)
E39 540 Touring (1997-2003)
E60/E61 5-Series RWD (2004-2010)
E60 M5 (2006-2010)
F10 528i/535i/550i RWD (2011-2016)
F10 M5 (2013-2016)
6 Series
E63/E64 6 Series (2004-2010)
E63/E64 M6 (2006-2010)
F06/F13 640i/650i RWD (2012-2018)
F06/F13 M6 (2012-2018)
7 Series
E32 7 Series (1988-1994)
E38 7 Series (1995-2001)
X Series
E84 X1 (2008-2015)
Z Series
Z3 (1994-2002)
Z4 E85 & E86 (2003-2008)
E89 Z4 (2009-2016 )
E52 Z8 (1998-2003)
