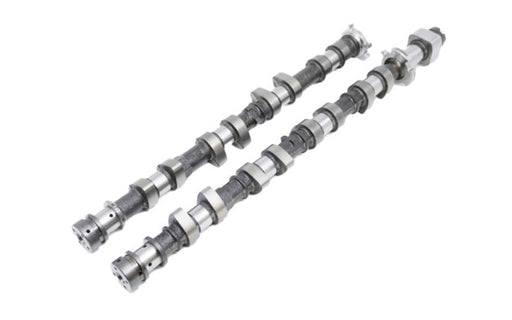

Kelford Camshafts for 2015-2022 Ford Mustang Ecoboost and 2016-2018 Ford Focus RS

Ford Ecoboost 2.3L Camshafts, ultimate race performance to suit well-built engines making 700hp+. Suits 64-72mm turbos with high RPM and a big boost in mind. A valve spring upgrade is required, Kelford Cams recommends a KVS250X-T valve spring and retainer kit.

Features

• Valve Clearance
• Intake: 0.25mm
• Exhaust: 0.30mm
• Cam Lift
• Intake: 10.75mm
• Exhaust 10.80mm
• Rocker Ratio
• Intake: 1
• Exhaust: 1
• Net Valve Lift
• Intake: 10.50mm
• Exhaust: 10.50mm
• Advertised Duration @ 0.1mm Valve Lift
• Intake: 268
• Exhaust: 287
• Duration @ 1mm Valve Lift
• Intake: 232
• Exhaust: 236
• Timing @ 1mm Valve Lift
• IVO: 16 degrees ATDC
• IVC: 68 degrees ABDC
• EVO: 38 degrees BBDC
• EVC: 18 Degrees ATDC
• Suggested Centerlines
• Intake: 132
• Exhaust: 100
• Lift @ TDC
• Intake: 0.15mm
• Exhaust: 2.95mm

Benefits

• Improved Acceleration and Performance

Applications

• 2015-2022 Ford Mustang Ecoboost
• 2016-2018 Ford Focus RS

What's In The Box?

• 1 - Intake Camshaft
• 1 - Exhaust Camshaft
