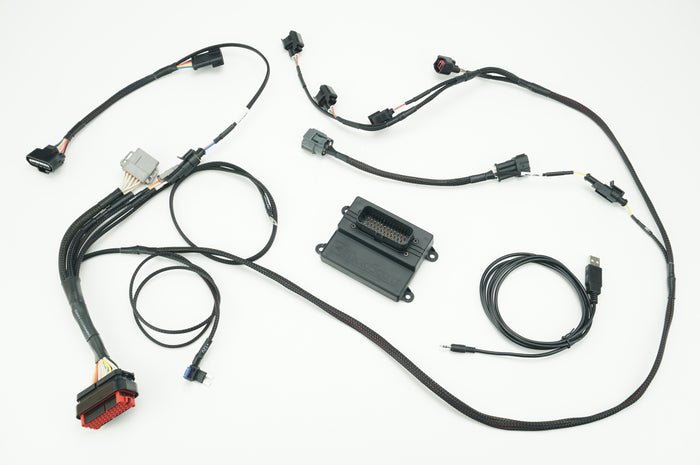

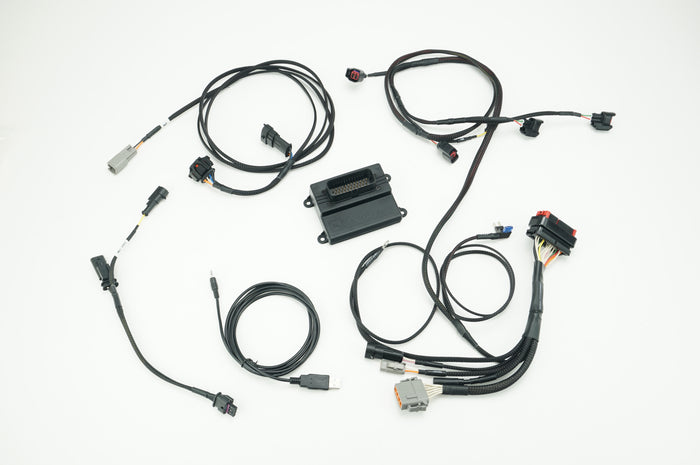

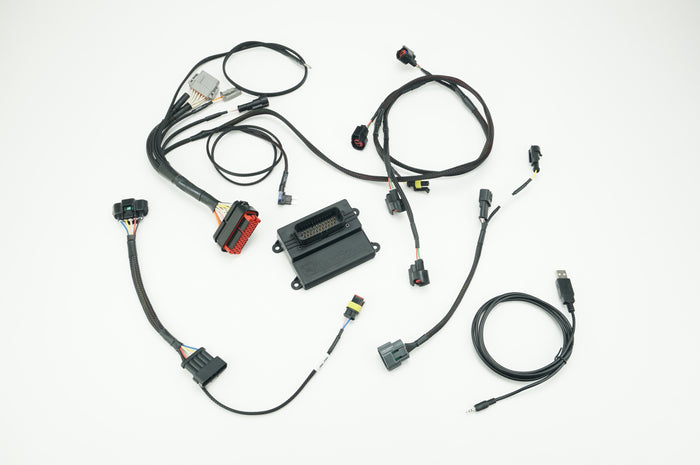

It’s finally here! The Damond Motorsports PI Aux Fuel Controller Kit with Plug-and-Play Harness—powered by the proven Microsquirt platform—is the ultimate, non-invasive way to add tunable port injection to your Mazdaspeed 3, Mazdaspeed 6, Focus ST, Focus RS, or Fiesta ST.
Say goodbye to tedious wiring diagrams, wire strippers, and soldering irons. Our custom-designed, fully labeled PnP harness makes installation a breeze, taking only a few minutes from start to finish. Power is cleanly sourced via an included add-a-fuse, and installation requires only basic hand tools.
Key Features & Highlights
-
EV6 Connectors: Pre-wired with four EV6-style fuel injector connectors (the standard used by Injector Dynamics and most popular aftermarket injectors).
-
Custom Damond Spec PnP Harness: Designed from the ground up to our exact specifications—labeled, pre-wired, and built specifically for MZR DISI and Ford EcoBoost platforms.
-
Pre-Flashed With Firmware Out-of-the-Box: Unlike off-the-shelf Microsquirts that ship without firmware, every Damond controller comes pre-flashed with active firmware before leaving our shop, ready to put a tune on.
-
Direct USB Tuning Cable Included: Includes our custom-built cable that bridges USB straight to the harness's 2.5mm TRS connector—no daisy-chaining multiple adapters just to talk to the ECU like off-the-shelf Microsquirts.
-
Direct-Fit Mounting on Damond Battery Trays: Bolt-on compatibility with Damond Motorsports battery trays for a clean, OEM-style engine bay setup.
-
Base Setup Maps Included: Baseline configuration files are available to give your tuner a quick, hassle-free starting point.

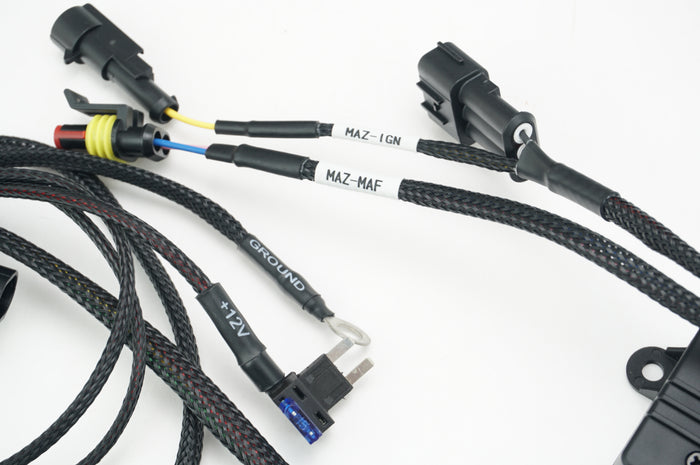

Simple, 4-Point Signal & Power Hookup
No tapping into dozens of obscure wires. Beyond plugging in your injectors, the harness only requires four basic connections to get up and running:
-
12V Power: Cleanly tapped via the included add-a-fuse.
-
Engine Ground: Critical for signal noise isolation (should be grounded directly to the engine block/head, not the chassis).
-
Ignition Signal: Picked up from any single cylinder ignition coil with a PnP, removable harness (cylinder choice does not matter).
-
Load Signal: Connects to the MAF sensor on Mazdaspeed platforms, or the MAP sensor on Ford EcoBoost platforms, both with a PnP, removable harness.
Built-In Expansion Provision

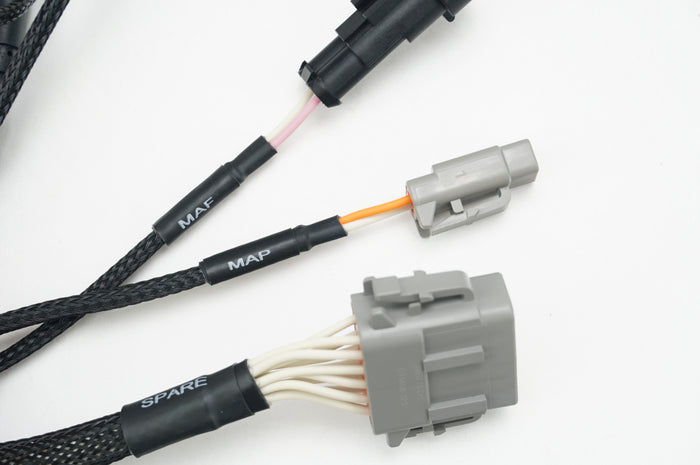

The breakout harness using a 12-pin Deutsch connector (labeled "SPARE") serves as a pre-wired expansion port for future growth. It houses critical dedicated channels—including sensor ground, 5V reference power, flex-fuel signal, and temperature inputs—making it painless to pin in additional sensors or features down the road without modifying the main harness.
Future Development & Advanced Capabilities
The Microsquirt platform is packed with untapped potential. While the base kit focuses on rock-solid port injection fuel delivery out of the box, we are actively researching and developing expansions using the integrated expansion port.
Note: The potential capabilities below are in testing/development. Unlocking these features in the future will require tune updates, additional sensors pinned into the expansion connector, and an experienced tuner.
-
Closed-Loop Fueling: Real-time wideband feedback to dynamically adjust port injector pulse widths and maintain target air-fuel ratios under load.
-
Flex-Fuel Integration: Ethanol content sensor input to automatically scale secondary fueling based on your exact E85 blend.
-
Electronic Boost Control: Utilizing the controller to manage boost output directly alongside secondary fuel delivery.
-
Auxiliary Fuel Pump Actuation: Triggering external inline or surge tank fuel pumps dynamically based on load, boost, or RPM thresholds.
-
Fuel Pressure Monitoring: Tracking secondary rail fuel pressure in real time to fine-tune injection and protect against pressure drops.
-
Lean-Condition Failsafe Protection: Leveraging closed-loop monitoring and fuel pressure tracking to cut power to the boost solenoid if a lean condition or fuel pressure drop occurs.
Ready to unlock your platform's full fueling potential?
Stop letting the factory direct-injection system hold back your horsepower goals. Upgrade to the Damond PI Aux Fuel Controller Kit today and give your tuner the seamless, reliable port-injection management your build deserves.
Current vehicle fitment:
Mazda:
Mazdaspeed3 (all years)
Mazdaspeed6
CX-7
Ford (awaiting tester feedback):
Focus ST
Focus RS
Fiesta ST
Free US shipping! Current into pricing for a limited time!
